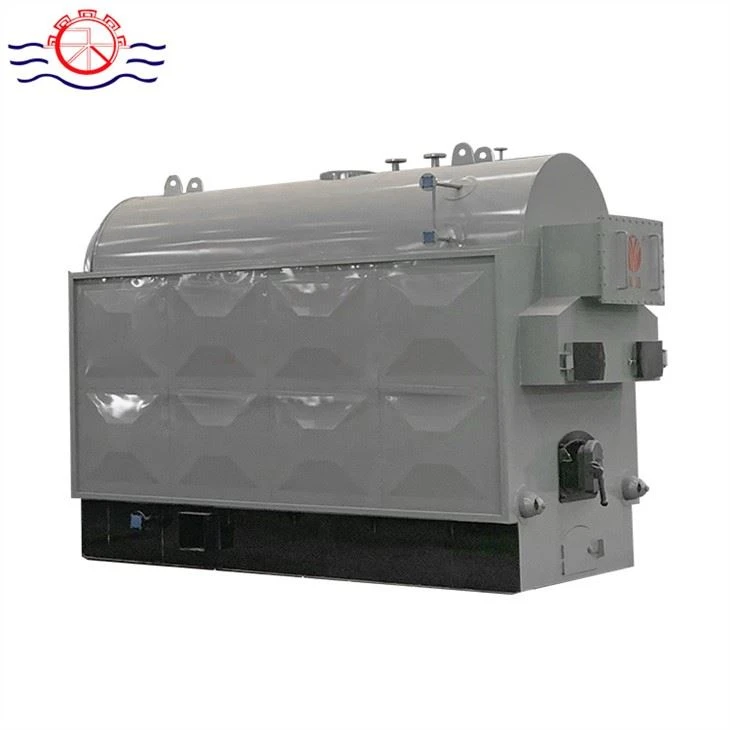

Manual Coal Fired Steam Boiler Grate

Product description

Manual coal fired steam boiler grate adopts a three-return water-fired tube structure with a single drum longitudinally arranged. The two sides of the furnace are densely distributed with light-tube water-cooled wall tubes. The design structure is reasonable and compact; the heating area is large, the flue gas flow is long, and the heat transfer effect is good. The smoke temperature is low, so the thermal efficiency is high, the operating cost is low, and the use is more economical.

Product Specifications

Place of Origin: Shandong, China

Brand Name: Xinyue

output: steam

Size (L*W*H): depends on

Weight: 5~50 tons

Warranty: 2 years, 2 years

Main selling point: Energy saving

Color: as your request

Rated evaporation: 0.5-8t/h

Rated steam pressure: 0.7/1.0/1.25/1.6Mpa

Rated steam temperature: 170/184/194/204℃

Main Feature

1. There are enough cleaning hand hole devices to facilitate manual and mechanical cleaning of dirt and internal inspection;

2. The upper part of the Manual coal fired steam boiler grate is equipped with a large enough manhole;

3. Personnel can enter the furnace body from the manhole, which greatly facilitates the inspection and maintenance of the boiler.

Packaging & Delivery

Packaging Details

1.When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up.

2. The smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.

3.The products could be transported by ship and train, customers could designate the ports.

4. If necessary, the small auxiliaries could be transported by airplane.

Picture example:

Lead Time:

Production Process

Product application scenarios

Manual coal fired steam boiler grate is widely used in food and beverage factories, farms, restaurants, energy and mining, textile, chemical, lumber mills and other occasions.

Certified product

Our advantage

 We also provide air nozzle for pulverized coal furnace and CFB boiler of various materials.

FAQ

1. What are the limitation (size, humidity, chemical element concentrations) of coal fuel/solid fuel/wood fuel?

Size requirement of coal:6-25mm

Size requirement of blending coal: <50mm (the coal less than 6mm should less than 30%)

Diameter of biomass particle: 6~10mm, length: 25~50mm, water content < 15%, ash content < 2%, sulphur content<0.07%, chlorinity <0.07%, nitrogen content < 0.5%

2. What is the size of furnace door and blower hopper?

Size of furnace door:

Standard elliptical furnace door:300*800*1500

Blower hopper size:

2 tons conical hopper: 1400*800*1500

4 tons conical hopper: 2200*1400*1500

3. What is the combustion mode of coal/biomass fired boiler?

The combustion mode of coal/biomass fired boiler is layer combustion. Place the flue on the fixed or moved grate, to form an evenly fuel bed with a certain thickness, air comes from the bottom of grate, and combustion occurred on the fuel bed.
